Resume as Code

Building a Resume with LaTeX + GitHub Actions

October 8, 2019

I avoid brand new tech until I have an itch to scratch: a small, self-contained problem that seems it might lend itself nicely to $someTool. I’m usually unsure I’ll be able to achieve what I have in mind. But maybe…

This time, the problem was something that had annoyed me for as long as I’d been employed: resumes. Not the fact of them, or even writing them, necessarily. Just managing different versions.

I was swimming in Dropbox folders with dozens of files saved in various formats; I needed to maintain multiple documents to preserve different iterations, and export PDFs for distribution. Version control was a nightmare.

LaTeX and git to the Rescue

One day I happened upon Daniel Cousineau’s resume. Daniel was using a tool I’d heard of but never worked with called LaTeX (a system for generating documents, and not a particularly new one), along with GitHub releases to track his resume’s evolution. It seemed promising.

I set up alessbell/resume, rewrote my resume as resume.tex and, back in June, released v1.0 🎉

Wherefore Art GitHub Actions

Having a resume managed in GitHub was a very welcome change, but there were still a few manual steps every time I wanted to cut a release:

  1. Draft a new release via GitHub UI. Tag my commit and begin manually creating the release.
  2. Manually compile resume.tex and upload the PDF as a release asset. GitHub automatically includes the source code in both zip and tarball formats, but I wanted to include a compiled resume.pdf, too. I’d run pdflatex locally and drag and drop the file, again via GitHub UI.
  3. Update the copy of resume.pdf in Gatsby’s /static folder. I’d take my new PDF and drag and drop it into my local copy of the codebase for this website, since I want aless.co/resume.pdf to always display the latest version. Then I’d manually commit it and open a PR.

Once I’d isolated the steps that were candidates for automation, I sketched out the ideal workflow: first, automating releases in alessbell/resume, then somehow pinging another repository when a new release was published (?), and finally, the other repository (this blog) would download resume.pdf from the latest release, commit it and open a PR… maybe?

I had no idea how feasible this all was, still knowing little to nothing about the GitHub Actions API. But automating even one step would be a win!

Spoiler Alert

tl;dr my ideal workflow was possible, so I built it 🐙💜

If you’d like to browse the code, steps 1 and 2 are achieved by the main workflow in alessbell/resume. Step 3 is handled by actions in this blog’s repository, namely /commit-resume. For a walk-through of the code, keep reading 😎

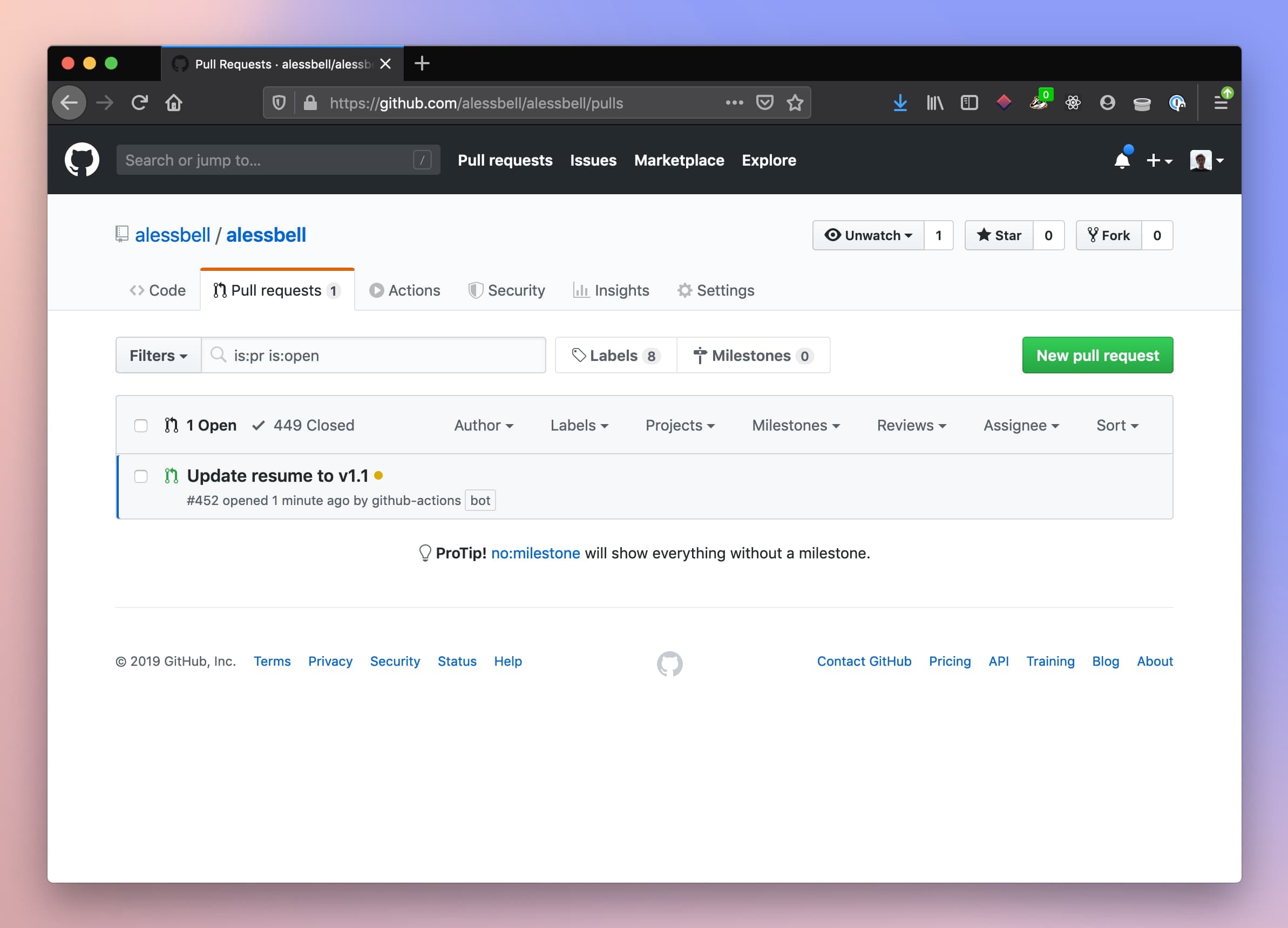

The first PR created by my GitHub action: updating a PDF with the one it downloaded from the latest automated release in another repository ✨
The first PR created by my GitHub action: updating a PDF with the one it downloaded from the latest automated release in another repository ✨

1. Compile the PDF and Automate Releases

I figured automating the release part would be easy—surely there’s already an action for that—but I wasn’t so sure about compiling the LaTeX to PDF for inclusion in the release.

Delightfully, both steps turned out to be trivial to implement. I found off-the-shelf actions for both: xu-cheng/latex-action for compiling my LaTeX to PDF and softprops/action-gh-release for creating the GitHub release with the compiled PDF from the previous step attached as an asset.

My first .github/workflows/main.yml looked like this:

name: Publish new release of resume
on:
  push:
    tags:
      - 'v*.*'
jobs:
  build:
    runs-on: ubuntu-latest
    steps:
      - name: Checkout
        uses: actions/checkout@master
      - name: Compile LaTeX document
        uses: xu-cheng/latex-action@master
        with:
          root_file: resume.tex
      - name: Release
        uses: softprops/action-gh-release@v1
        with:
          files: resume.pdf
        env:
          GITHUB_TOKEN: ${{ secrets.GITHUB_TOKEN }}

This workflow runs on any push event targeting tags matching the glob pattern v*.* (docs). The first step, actions/checkout, checks out the repository to the current GitHub workspace so that the workflow can access the contents of your repository.

After that, I can pass the next step the name of my file, resume.tex, and the subsequent step can directly access the compiled resume.pdf from the previous one. In order to author a release, I need to pass in a GITHUB_TOKEN; luckily GitHub already makes certain environment variables available.

2. Ping Another Repository

In order to keep the version of my resume displayed on this website up-to-date, I’d need a way to kick off a new workflow each time I published alessbell/resume.

Luckily, such an event exists: repository_dispatch triggers a webhook event “when you want to trigger a GitHub Actions workflow for activity that happens outside of GitHub,” or, in this case, in a different repository’s action. A simple curl request with the correct auth token, headers and body does the trick.

This is the whole bash script from alessbell/resume/ping-repo:

#!/bin/bash

main() {
  curl -XPOST -H "Accept: application/vnd.github.everest-preview+json" \
  -H "Content-Type: application/json" \
  -H "Authorization: token ${GITHUB_TOKEN}" \
  "https://api.github.com/repos/${REPO}/dispatches" \
  --data '{"event_type": "update_resume"}'
}

main

There were two small caveats here. First, because this POST request is being dispatched for a repository other than the one from the action’s execution context, I needed a personal access token with repository scope set as a secret on the repository. I stored my secret as PA_TOKEN and passed it in the way I had the others:

- name: Pings repo
  uses: ./ping-repo
  env:
    GITHUB_TOKEN: ${{ secrets.PA_TOKEN }}
    REPO: alessbell/alessbell

Second, certain events, e.g. push will run on any branch unless the scope is narrowed by specifying a certain branch or tag. When I was testing this repository_dispatch event, however, nothing was happening despite having pushed a workflow to a branch in my blog’s repository listening for this exact dispatch event. It wasn’t until I pushed the blog’s workflow config to master that I saw it spring to life, activated by my Postman request to the /dispatches endpoint.

3. Download New PDF, Open PR

This final step felt like a stretch goal, but it proved to be just enough work for a train ride from Rhode Island to NYC. The first part involves fetching the latest version of alessbell/resume, and GitHub’s API has a dedicated endpoint for retrieving information about a repository’s latest release:

RELEASES_URL=https://api.github.com/repos/alessbell/resume/releases/latest

RES=$(curl -sSL -H "${AUTH_HEADER}" -H "${HEADER}" --user "${GITHUB_ACTOR}" -X GET ${RELEASES_URL})
VERSION=$(echo "${RES}" | jq --raw-output '.tag_name')
PDF_URL="https://github.com/alessbell/resume/releases/download/${VERSION}/resume.pdf"

# download resume.pdf and save in /static/resume.pdf
curl -L0 "${PDF_URL}" --output ./static/resume.pdf

Once I had the file downloaded, I’d just need to commit it and open a PR. This time, I’d try to use a pre-existing action with a bit less luck: I wasn’t able to integrate vsoch/pull-request-action directly (I’ll be the first to say it could have been user error — when I’m out of my comfort zone, I need to be able to tinker with the code), but reading its source taught me a lot about how to write a similar action that would work for my case.

I wound up with ~90 lines of bash and successfully used jq to process JSON for the first time. There was plenty of trial and error along the way, but once I plugged it all together, it Just Worked <3


Writing bash and yaml isn’t part of my day job, but it was a lot of fun once I got started; tinkering with GitHub Actions was the perfect excuse to learn something new while scratching an itch.

Is there a workflow you’re thinking about automating? I’d be curious to hear about it — you can ping me on twitter at @alessbell or email me at web[at]bellisar.io.
